3100 PSI Upgraded POWER PRESSURE WASHER WATER PUMP Troy-Bilt 020568 020568-00

Please review all product information to ensure that this product is compatible with your unit. Our staff constantly strives to provide clear and concise product information. We understand that sometimes it can be difficult to confirm product compatibility. It is your responsibility to confirm this is the correct product you need; therefore, we encourage all customers to fully review the information provided in this listing prior to purchase. Nothing is worse than having to return a product, trust us...we get it. Let's work together to avoid this! If you are unsure as to whether or not this is the correct product for your unit, please ask. If you seek assistance we will need as much of the following information as possible, if applicable, to help you find the product you are looking for: ▪ Model and/or Sub-model ▪ Spec and/or Type Number ▪ Code and/or Serial Number ▪ Year ▪ Engine Horsepower. Our knowledgeable product specialists are always willing to help you verify product fitment. Stay rugged, my friend.

• 3100 PSI Upgraded POWER PRESSURE WASHER WATER PUMP Troy-Bilt 020568 020568-00
• Specs - Pump - Max Pressure: 3100 PSI. Max Flow: 2.5 GPM. Max Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Max Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Chemical Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Material: Rubber. Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8"; Refer to images 2 and 3 for more information

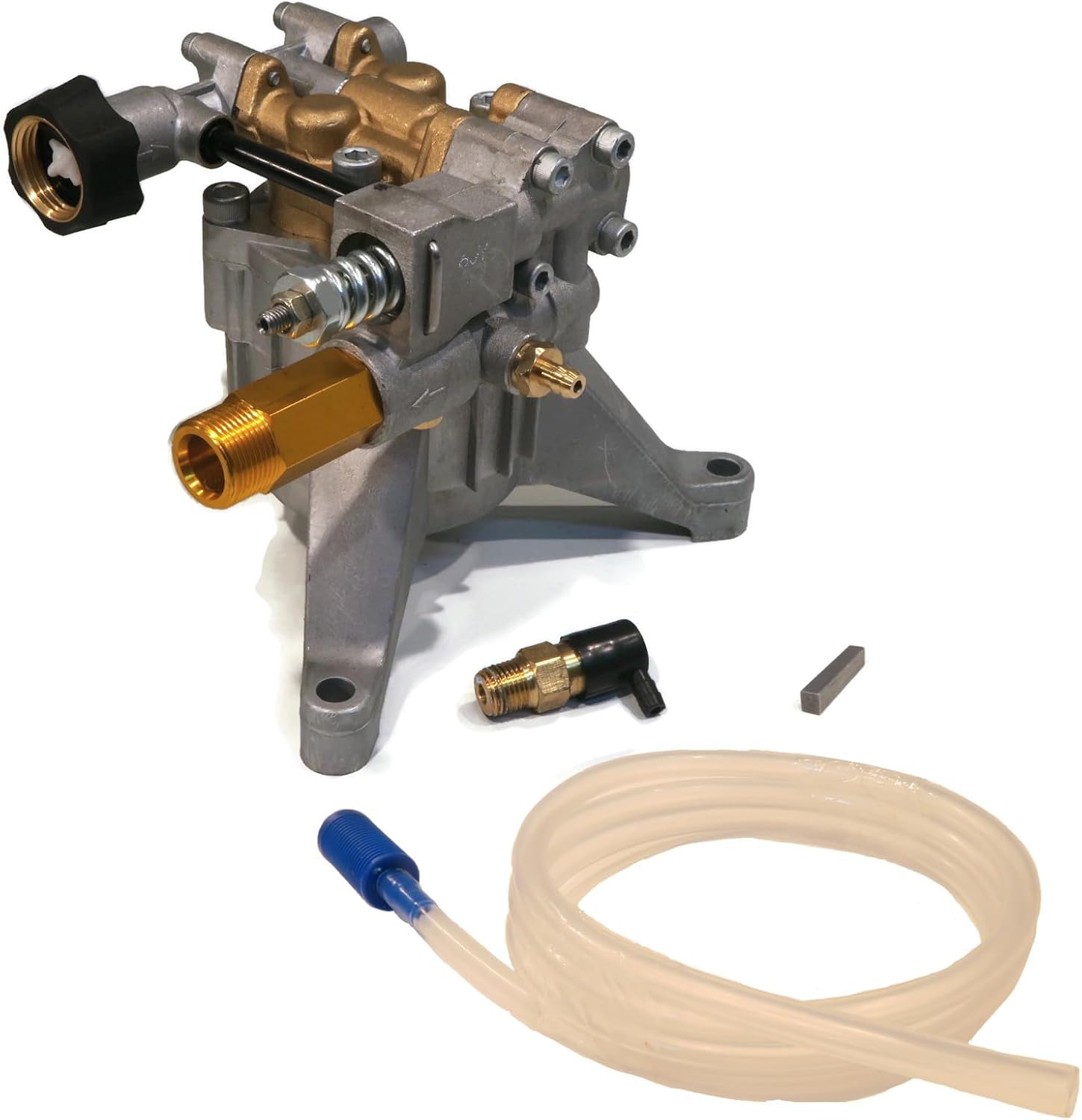

• Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve & Outlet Tube (all come installed), (1) Keyway and (1) Chemical Hose with Filter; comes as shown in the first image
• Some models may require removing the pump to change engine oil. Depending on engine configuration, longer bolts and spacers (washers) may be needed to mount the pump properly—especially if the engine has a longer shaft or the pump legs hit the frame or engine. Failure to use spacers when needed can cause pump legs to break from stress. Spacers and longer bolts are not included but can be purchased at a hardware store. Common bolt sizes: (2) 5/16"-18 x 2-1/2", and (1) 5/16"-18 x 3-1/2"
• This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
