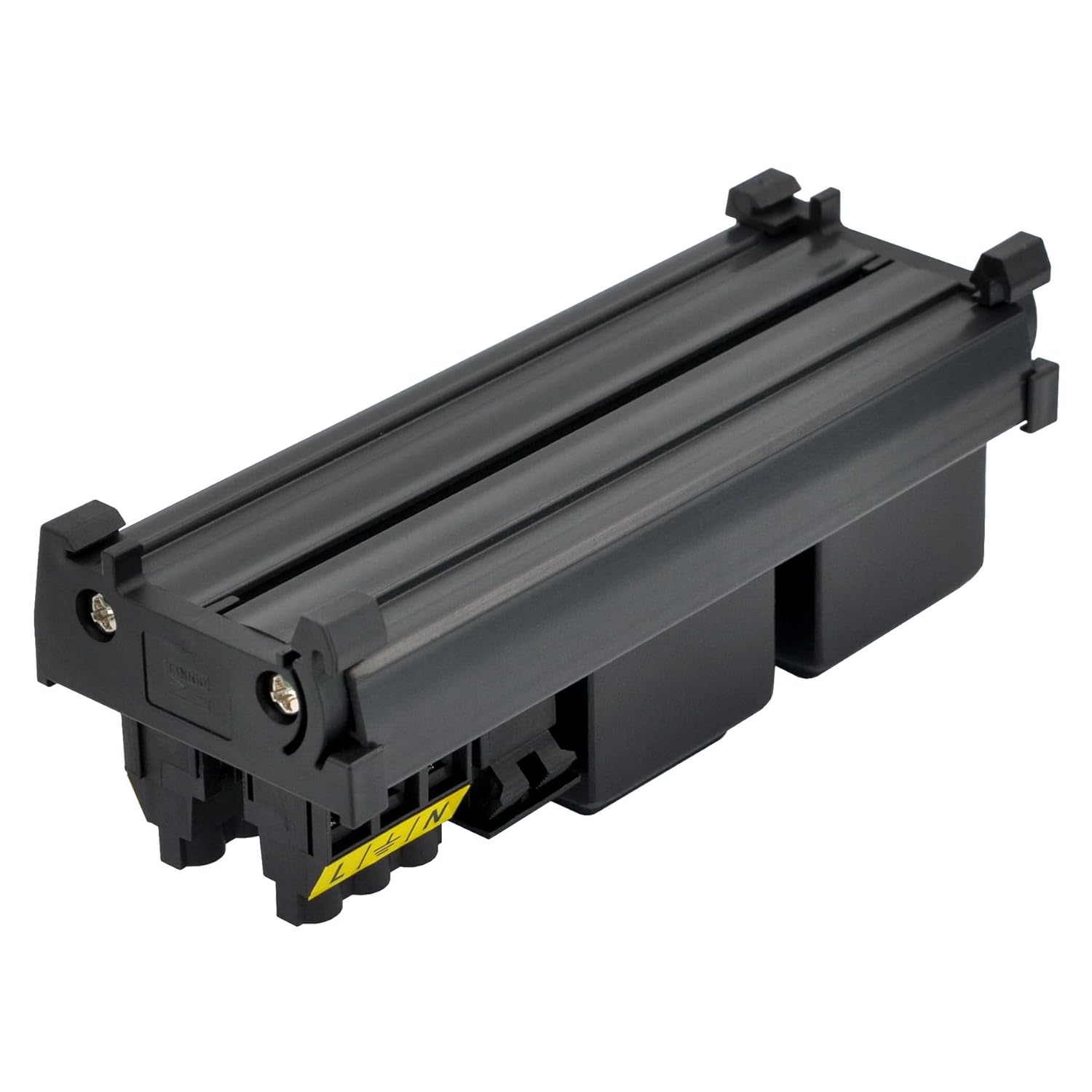

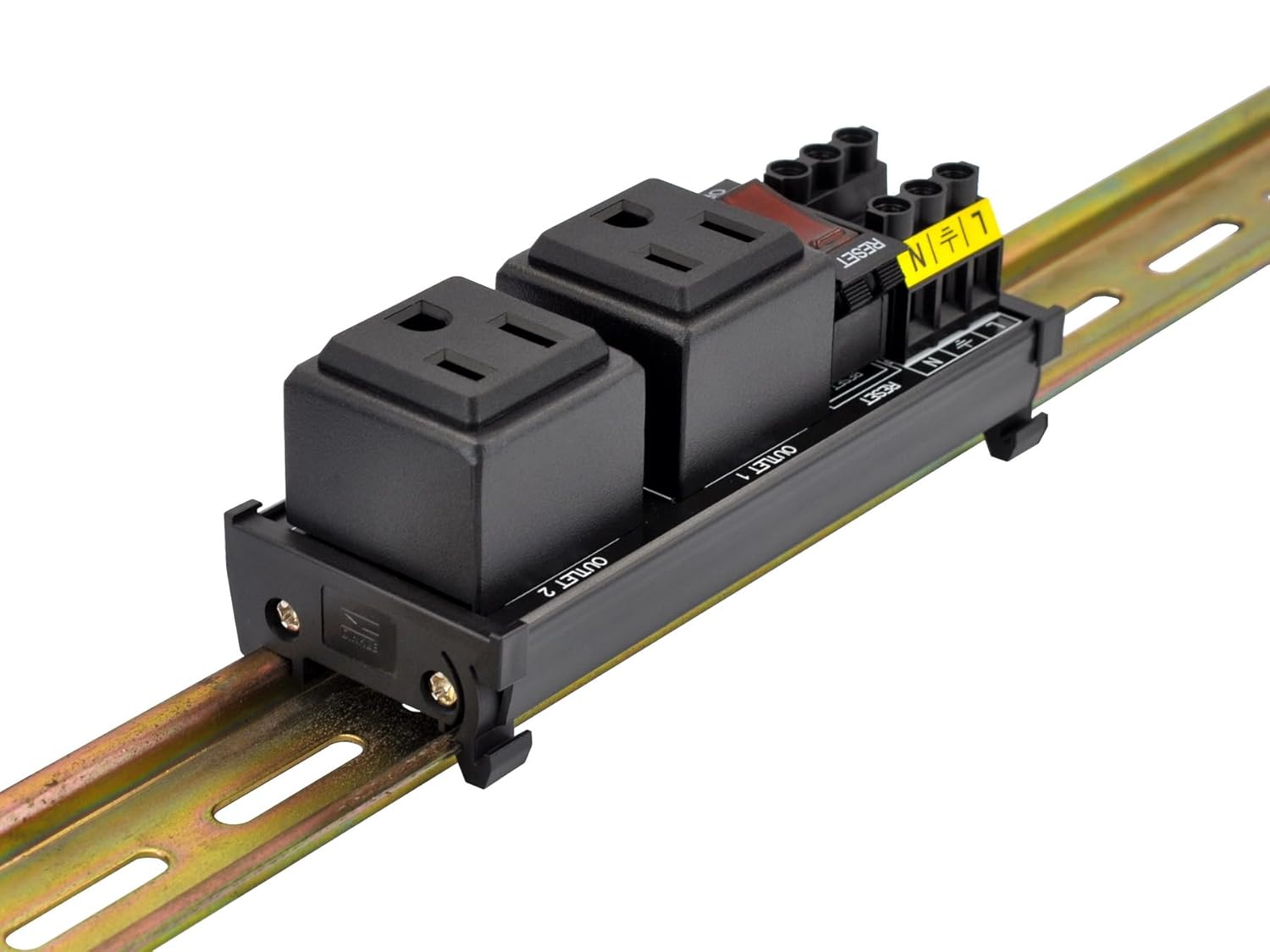

DIN Rail Mount AC 120V NEMA 5-15R Double Receptacles Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector
Product details
| Management number | 210098188 | Release Date | 2026/04/02 | List Price | $10.58 | Model Number | 210098188 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Outlet: two 3-prong grounded NEMA 5-15R AC receptacles. Reinforced AC receptacle to ensure stability.
- Working voltage AC 120V. Single receptacle rated current 15 Amps. Total receptacles output rated current 15 Amps (limited by overload protector rated current).
- Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
- UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
| Brand | OONO |
|---|---|
| Voltage | 120 Volts |
| Amperage | 15 Amps |
| Plug Type | Type A |
| Manufacturer | CZH-LABS |
| Model Number | D-1560T |
| BuiltIn Media | Power Strip Module 1PCS |
| Maximum Current | 30 Amps |
| Mfr Part Number | D-1559T to D-1562T |
| Number of Ports | 2 |
| Power Plug Type | Type A - 2 pin (North American) |
| Number of Outlets | 2 |
| Compatible Devices | All |
| Enclosure Material | fiber |
| Other Special Features of the Product | Mountable, On And Off Switch |
